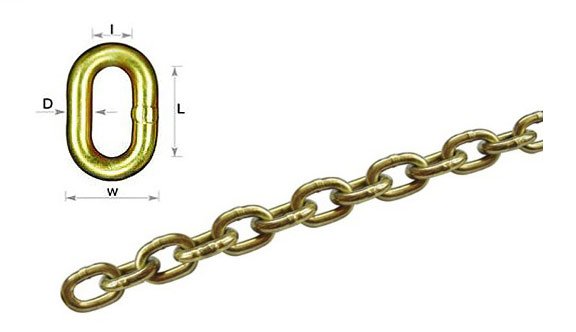

ASTM80 USA standard link chain
PRODUCT OVERVIEW
The ASTM80 USA standard link chain is known for its exceptional strength, durability, and versatility. It is manufactured in compliance with the strict guidelines and specifications set forth by ASTM International, ensuring its quality and reliability.
Specification
|
NORMAL SIZE |
WORKING LOAD LIMIT (MAX) | PROOF TEST (MIN) | BREAKING FORCE MIN | WEIGHT PER 100′ | INSIDE LENGTH (MAX) | INSIDE WIDTH (MIN) | |||||||
| inches | mm | kg | Ib | kn | Ib | kn | ID | kg | Ib | mm | inches | mm |
inches |
| 1/8 | 4.0 | 190 | 420 | 3.78 | 850 | 7.56 | 1,700 | 8.8 | 19 | 22.6 | 0.89 | 7.4 | 0.29 |
| 3/16 | 5.5 | 360 | 800 | 7.11 | 1,600 | 14.2 | 3,200 | 18.3 | 40 | 24.1 | 0.95 | 10.2 | 0.40 |
| 1/4 | 7.1 | 600 | 1,330 | 11.8 | 2,650 | 23.6 | 5,300 | 32.7 | 72 | 25.4 | 1.00 | 12.7 | 0.50 |
| 5 / 16 | 8.7 | 910 | 2,000 | 17.8 | 4.000 | 35.6 | 8,000 | 48.0 | 106 | 27.9 | 1.10 | 12.7 | 0.50 |
| 3/8 | 10.3 | 1.270 | 2,800 | 24.9 | 5,600 | 49.8 | 11,200 | 70.3 | 155 | 31.2 | 1.23 | 15.7 | 0.62 |
| 1/2 | 13.5 | 2.190 | 4,800 | 42.9 | 9.650 | 85.8 | 19,300 | 123 | 271 | 38.9 | 1.53 | 20.3 | 0.80 |
| 5/8 | 16.7 | 3.350 | 7,400 | 65.8 | 14,800 | 131.6 | 29,600 | 184 | 405 | 48.3 | 1.90 | 25.4 | 1.00 |
| 3/4 | 19.8 | 4.700 | 10,400 | 92.5 | 20,800 | 185.0 | 41,600 | 264 | 582 | 54.6 | 2.15 | 28.4 | 1.12 |
| 7/8 | 23.0 | 6.350 | 14,000 | 124.5 | 28.000 | 249.0 | 56,000 | 368 | 811 | 63.5 | 2.50 | 34.8 | 1.37 |
| 1 | 26.5 | 8.400 | 18,600 | 165.4 | 37.200 | 330.8 | 74,400 | 474 | 1045 | 69.9 | 2.75 | 38.1 | 1.50 |
|
NORMAL SIZE |
WORKING LOAD LIMIT (MAX) | PROOF TEST (MIN) | BREAKING FORCE MIN | WEIGHT PER 100′ | INSIDE LENGTH (MAX) | INSIDE WIDTH (MIN) | |||||||
| inches | mm | kg | Ib | kn | Ib | kn | ID | kg | Ib | mm | inches | mm |
inches |
| 1/4 | 7.1 | 1,180 | 2,600 | 19.1 | 4.300 | 34.5 | 7.750 | 36.3 | 80 | 21.8 | 0.86 | 10.2 | 0.40 |
| 5/16 | 8.7 | 1,770 | 3,900 | 28.4 | 6.400 | 51.6 | 11.600 | 50.4 | 111 | 26.7 | 1.05 | 12.2 | 0.48 |
| 3/8 | 10.3 | 2.450 | 5,400 | 39.6 | 8.900 | 72.0 | 16.200 | 72.6 | 160 | 30.3 | 1.19 | 14.7 | 0.58 |
| 1/2 | 13.5 | 4,170 | 9.200 | 68.0 | 15,300 | 122.7 | 27.600 | 128.6 | 284 | 36.0 | 1.43 | 19.1 | 0.75 |
- Transport Chain Astm80 (G70)
|
NORMAL SIZE |
WORKING LOAD LIMIT (MAX) | PROOF TEST (MIN) | BREAKING FORCE MIN | WEIGHT PER 100′ | INSIDE LENGTH (MAX) | INSIDE WIDTH (MIN) | |||||||
| inches | mm | kg | Ib | kn | Ib | kn | ID | kg | Ib | mm | inches | mm |
inches |
| 1/4 | 7.1 | 1,430 | 3.150 | 27.8 | 6,300 | 56.0 | 12.600 | 34.0 | 75 | 21.8 | 0.86 | 11.4 | 0.45 |
| 5 / 16 | 8.7 | 2.130 | 4,700 | 41.8 | 9,400 | 83.6 | 18,800 | 50.4 | 111 | 25.6 | 1.01 | 11.7 | 0.46 |
| 3/8 | 10.3 | 2.990 | 6,600 | 58.7 | 13,200 | 117.4 | 26.400 | 71.0 | 156 | 30.2 | 1.19 | 14.0 | 0.55 |
Note: We also can make the nonstandard or special tensile chain according to ti diet’s requirements.
ASTM80 USA standard link chain Applications
The ASTM80 USA standard link chain finds extensive applications across different sectors. Some common applications include:
- Lifting and rigging operations in construction sites and industrial settings
- Load securing and transportation in logistics and cargo handling
- Towing and anchoring in marine and offshore operations
- General-purpose use in agriculture, forestry, and mining industries
ASTM80 USA Standard Link Chain Features
The ASTM80 USA standard link chain offers several notable features that contribute to its popularity and utility. Here are eight key features:
High Strength
Durability
Resistance to Corrosion
Versatility
Ease of Use
Reliable Performance
Choosing the Right ASTM80 USA standard link chain
When selecting the ASTM80 USA standard link chain for your specific application, consider the following factors:
Working Load Limit (WLL): Determine the maximum load the chain will be subjected to and select a chain with an appropriate WLL that exceeds your requirements.
Chain Size and Configuration: Choose the chain size and configuration that aligns with your application needs, considering factors such as link diameter, link length, and overall design.
Material Selection: Ensure that the chain is made of high-quality materials, such as alloy steel, to ensure strength and durability.
Compliance and Certification: Verify that the chain meets the ASTM80 USA standard and is certified by ASTM International.
LET'S GET IN TOUCH
FAQ - ASTM80 USA standard link chain
ASTM80 USA standard link chain is a type of chain that conforms to the standards set by the American Society for Testing and Materials (ASTM). It is designed to meet specific requirements for strength, dimensions, and performance in various industrial applications.
Some key features of ASTM80 USA standard link chain include high tensile strength, excellent resistance to wear and corrosion, precise dimensions, and compatibility with a wide range of equipment and accessories.
ASTM80 USA standard link chain is commonly used in lifting, rigging, towing, and securing applications. It is often found in industries such as construction, marine, agriculture, and transportation.
Yes, ASTM80 USA standard link chain is known for its exceptional strength and durability, making it well-suited for heavy-duty applications. It can handle high loads and withstand demanding conditions.
Like any chain, ASTM80 USA standard link chain benefits from regular maintenance. It is recommended to inspect the chain for wear, lubricate it as needed, and store it properly to ensure its longevity and optimal performance.
