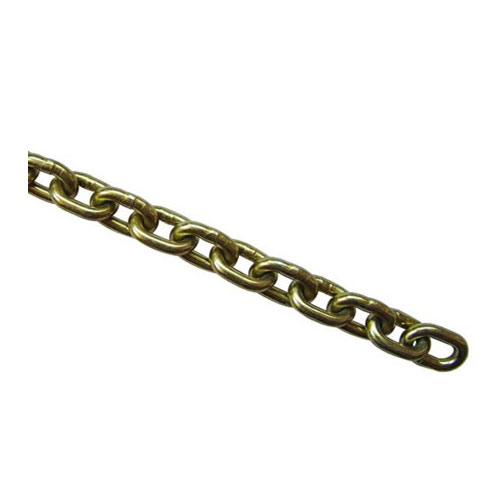

Germany Standard Link Chain

PRODUCT OVERVIEW

Our NACM2003 Standard Link Chain is a reliable and high-quality chain that meets the stringent standards set by the National Association of Chain Manufacturers (NACM). Crafted with precision and attention to detail, this chain is built to withstand heavy loads and perform exceptionally in various applications.

Specification

1.Din763 Link Chain

SIZE D		INSIDE LENGTH T		OUTSIDE WIDTH b		WORKING LOAD kg	TEST LOAD n	BREAKING LOAD n	WEIGHT PER M kg
mm	‡mm	mm	‡mm	mm	‡ mm	WORKING LOAD kg	TEST LOAD n	BREAKING LOAD n	WEIGHT PER M kg
2.0	0.5	22	1.0	8	0.4	25	800	1250	0.06
2.5		24	1.1	10	0.5	40	800	2000	0.10
3		26	1.2	12	0.6	55	1050	3200	0.15
3.5		28	1.3	14	0.7	80	1540	3850	0.20
4		32	1.5	16	0.8	100	2500	6500	0.27
4.5		34	1.7	18	0.9	128	3000	8000	0.35
5		35	1.8	20	1.0	160	4000	10000	0.43
5.5		38.5	1.8	22	1.1	195	4200	10500	0.52
6		42	2.0	24	1.2	200	5000	12000	0.63
7		49	2.5	28	1.4	300	7500	19000	0.86
8		52	2.5	32	1.6	400	10000	25000	1.10
8.5		56	2.8	34	1.7	460	10200	25500	1.25
9		59	3.0	36	1.8	530	10500	32000	1.41
10	1	65	3.2	40	2.0	630	16000	40000	1.75
11		72	3.4	44	2.0	790	15800	47500	2.11
12		78	3.6	48	2.3	940	18000	56500	2.55
13		82	4.0	52	2.5	1000	25000	63000	2.95
16		100	5.0	64	3.2	1600	40000	100000	4.45
18		113	5.2	70	3.2	2120	42300	127000	5.65
19		119	5.6	72	3.4	2370	47300	142000	6.25
20		120	6.0	75	3.8	2500	50000	160000	7.00
22		127	6.0	82	4.0	3170	63300	190000	8.55
25		140	6.6	85	4.2	4090	81700	245000	10.90
28		152	7.0	96	4.7	6000	120000	300000	13.9
32		171	7.8	108	5.2	8000	160000	400000	18.2

2.Din764 Link Chain

SIZE d		INSIDE LENGTH T		INSIDE WIDTH B1	OUTSIDE WIDTH B2	LENGTH PER11 LINKS		WEIGHT PER100M kg	BREAKING LOAD kn	TEST LOAD kg
mm	‡mm	‡mm	‡mm	‡mm	‡mm	‡mm	‡mm	kg	kn	kg
4	0.20	16	0.30	5	14	176	1.60	31.3	7	400
			0.20				0.90
5	0.20	18	0.40	7	18.2	198	1.80	51.4	11.8	680
			0.20				1.00
6	0.20	21	0.50	8	21.2	231	2.00	74.0	16.5	850
			0.20				1.10
8	0.20	28	0.50	11	29	308	2.20	131.5	32	1680
			0.30				1.20
10	0.30	35	0.60	14	36	385	2.70	200	50	2630
			0.30				1.50
12	0.30	42	0.60	16	41	462	3.20	298	70	3680
			0.30				1.80
13	0.40	45	0.70	18	47	495	3.50	350	80	4200
			0.40				2.00
14	0.45	49	0.75	20	48	539	3.80	406	92	4830
			0.45				2.00
16	0.50	56	0.90	22	58	616	4.30	520	125	6700
			0.50				2.50
18	0.80	63	1.00	24	65	693	4.70	650	160	8400
			0.50				2.80
20	1.00	70	1.10	27	72	770	5.40	820	200	10000
			0.60				3.20
23	1.20	80	1.30	31	53	880	6.20	110	250	13000
			0.70				3.50
26	1.30	91	1.50	25	94	1001	7.00	1400	320	16000
			0.80				4.00

3.Din766 Link Chain
