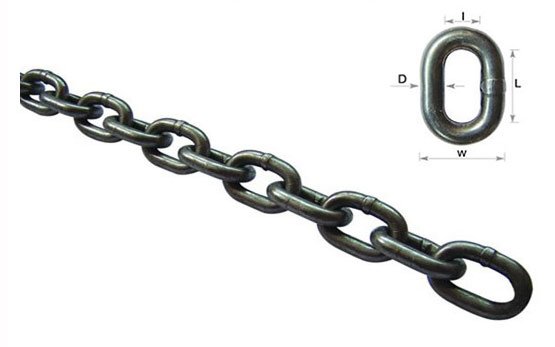

Japanese Fishing Link Chain

PRODUCT OVERVIEW

The Japanese fishing link chain is a vital component in the fishing industry, renowned for its quality, strength, and reliability.

With a rich history in fishing traditions, Japan has developed advanced techniques and standards for manufacturing chains specifically designed for the demanding conditions of the marine environment.

Specification

1.JAPANESE Fishing Chain G30

SIZE mm	INSIDE LENGTH mm	INSIDE WIDTH mm	OUTSIDE WIDTH mm	WEIGHT PER METER kg	PROOF TEST kg	BREAKING LOAD kg
8.7	27.9	12.7	30.1	1.63	1750	3500
10.3	31.2	15.7	36.3	2.37	2500	5000
11.9	34.8	19.1	42.9	3.23	3300	6600
13.5	38.1	20.6	47.6	4.19	4300	8600
14.0	49.0	20.0	49.0	3.98	4650	9300
16.0	56.0	24.0	56.0	5.22	6000	12000

2. JAPANESE Fishing Chain G80

SIZE mm	INSIDE LENGTH mm	INSIDE WIDTH mm	OUTSIDE WIDTH mm	WEIGHT PER METER kg	PROOF TEST kg	BREAKING LOAD kg
7.9	23.0	9.9	26.0	1.38	4000	8000
9.5	28.6	12.0	31.3	1.96	6000	12000
11.1	33.3	14.0	36.4	2.69	8000	16000
12.7	36.0	15.5	41.4	3.59	10000	20000
14.0	49.0	20.0	49.0	3.98	12500	25000
16.0	56.0	24.0	56.0	5.22	16000	32000

Japanese Fishing Link Chain Applications

Japanese fishing link chains find extensive use in various fishing applications, including:

Netting: These chains are commonly used in netting operations, providing the necessary strength to support and secure fishing nets. They ensure the integrity of the netting system, allowing for efficient and successful catches.
Trawling: Japanese fishing link chains are employed in trawling operations, where they are attached to trawl nets and used to tow and control the net’s opening and closing. The chains withstand the forces exerted during trawling and ensure the net remains stable and functional.
Longlining: These chains play a crucial role in longlining, providing the necessary strength and support for the mainline, branch lines, and hooks. They enable fishermen to efficiently deploy and retrieve longlines while ensuring the catch is secure.
Potting: Japanese fishing link chains are utilized in potting, where they are used to secure and lift pots or traps from the seabed. The chains withstand the weight of the pots and the forces exerted during lifting, facilitating the retrieval of the catch.

Japanese Fishing Link Chain Features

Japanese fishing link chains possess several key features that make them highly suitable for the fishing industry:

Corrosion Resistance

These chains are crafted with corrosion-resistant materials and coatings, such as stainless steel or galvanized finishes. They are capable of withstanding the corrosive effects of saltwater, ensuring long-lasting performance even in harsh marine environments.

High Strength

Japanese fishing link chains are designed to handle the heavy loads associated with fishing operations. They offer exceptional tensile strength and load-bearing capacity, enabling them to withstand the forces exerted during lifting, towing, and securing tasks.

Durability

The chains are constructed using robust materials and undergo stringent quality control measures to ensure durability. They are built to withstand the rigors of fishing activities, including exposure to rough seas, impact, and abrasion.

Flexibility

Japanese fishing link chains exhibit excellent flexibility, allowing them to adapt to the dynamic movements and stresses encountered during fishing operations. This flexibility makes them suitable for tasks that involve bending, twisting, and maneuvering.

Ease of Handling

Japanese fishing link chains are designed for ease of handling. They feature well-designed links and connections that facilitate smooth and efficient operations on fishing vessels. This allows fishermen to work more effectively, saving time and effort.

Versatility

These chains are versatile and suitable for various fishing applications. Whether it's netting, trawling, longlining, or potting, Japanese fishing link chains provide the necessary strength and reliability to support different fishing techniques.

Choosing the Right Japanese Fishing Link Chain

When selecting a Japanese fishing link chain, consider the following factors:

Fishing Technique: Determine the specific fishing technique you will be employing and choose a chain that is suitable for that technique. Different techniques may require different chain sizes, strengths, and configurations.
Corrosion Resistance: Ensure that the chain you select offers high corrosion resistance, especially if you will be operating in saltwater environments. Stainless steel chains or chains with galvanized finishes are common options for enhanced corrosion resistance.
Load Capacity: Consider the expected load capacity requirements for your fishing operations. Select a chain with an appropriate Working Load Limit (WLL) that exceeds the maximum loads you anticipate encountering.
Quality and Certification: Choose chains from reputable manufacturers that comply with industry standards. Look for certifications or quality assurance marks that validate the chain’s authenticity and adherence to safety standards.

RELATED PRODUCTS

Germany Standard Link Chain

NACM96 Standard Link Chain

NACM90 Standard Link Chain

ASTM80 USA standard link chain

FAQ - Japanese Fishing Link Chain

What is a Japanese Fishing Link Chain?

A: A Japanese Fishing Link Chain is a specialized type of chain used in the fishing industry. It is designed to be strong, durable, and resistant to corrosion, making it suitable for various fishing applications.

What are the key features of a Japanese Fishing Link Chain?

A: Japanese Fishing Link Chains typically have features such as high tensile strength, excellent resistance to saltwater corrosion, precise dimensions for secure connections, and a design that prevents tangling or snagging during fishing operations.

What materials are Japanese Fishing Link Chains made of?

A: Japanese Fishing Link Chains are commonly made from high-quality stainless steel or galvanized steel. These materials provide the necessary strength and corrosion resistance required for fishing activities in saltwater environments.

What sizes are available for Japanese Fishing Link Chains?

A: Japanese Fishing Link Chains come in various sizes, ranging from smaller diameters suitable for light fishing tasks to larger diameters for heavy-duty applications. The specific sizes available may vary depending on the manufacturer and product line.

How can a Japanese Fishing Link Chain be used in fishing?

Japanese Fishing Link Chains have versatile applications in fishing, including use as anchor chains, mooring chains, or connecting chains between fishing gear components. They are known for their reliability and ability to withstand the demanding conditions of marine environments.
