Load Binder
PRODUCT OVERVIEW
Shackles are essential components in rigging and lifting operations, providing a secure connection for chains, ropes, and other equipment. In this summary, we will explore three common types of shackles: D shackles, bow shackles, and long D shackles. Each type has its own unique design and applications.
Specification

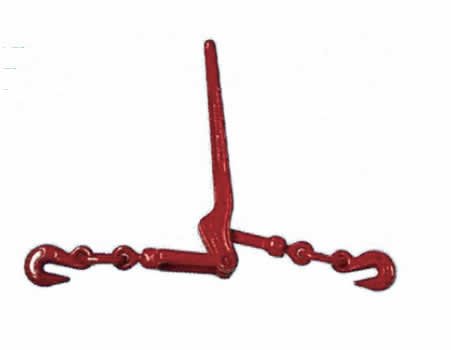

1.Standard Load Binder
| Min-Max chain size(in.) | Working load limit (Ibs.) | Breaking load limit(lbs.) | Handle length (in.) | Weight Each(kg) |
| 1/4 ~ 5/16 | 2600 | 7800 | 11.8 | 1.50 |
| 5/16 ~ 3/8 | 5400 | 19000 | 16.0 | 3.65 |
| 3/8 ~ 1/2 | 9200 | 33000 | 17.7 | 5.62 |
| 1/2 ~ 5/8 | 13000 | 46000 | 21.0 | 9.85 |
2.Ratchet Type Load Binder
|
Min-Max chain size(in.) |
Working load limit (Ibs.) | Breaking load limit(lbs.) | Handle length (in.) |
Weight Each(kg) |
| 1/4 ~ 5/16 | 2600 | 7800 | 11.8 | 1.50 |
| 5/16 ~ 3/8 | 5400 | 19000 | 16.0 | 3.65 |
| 3/8 ~ 1/2 | 9200 | 33000 | 17.7 | 5.62 |
| 1/2 ~ 5/8 | 13000 | 46000 | 21.0 | 9.85 |
3.Tension Lever
B.L. KN | Weight kg | D mm | L mm |
| 100 | 4 | 12 | 480 |
| 150 | 4.5 | 13 | 485 |
| 200 | 6 | 14 | 496 |
Load Binder Applications
D shakles, bow shakles, and long D shakles find extensive use in various industries and applications where lifting, rigging, and secure fastening are required. Some common applications include:
Marine and Offshore: These shakles are utilized in marine and offshore industries for mooring, anchoring, towing, and rigging applications. They provide a secure connection point for ropes, chains, or slings, ensuring reliable and safe operations in marine environments.
Construction and Rigging: In construction and rigging operations, D shakles, bow shakles, and long D shakles are employed for lifting heavy equipment, attaching cables or wires, and securing loads. They are essential components for maintaining safety and stability in construction sites and rigging operations.
Industrial and Manufacturing: These shakles play a crucial role in various industrial and manufacturing processes. They are used in machinery assembly, material handling, and transportation, where secure connections and load-bearing capabilities are required.
Transportation and Logistics: D shakles, bow shakles, and long D shakles are used in transportation and logistics for securing cargo, fastening containers, and attaching loads to trucks or trailers. They ensure the safe and reliable transport of goods.
Agriculture and Forestry: These shakles are also found in the agriculture and forestry sectors. They are used in applications such as logging, hoisting heavy equipment, and securing loads for transport or storage.
Durable Construction
Tensioning Mechanism
Load Rating
Hooks or Grab Hooks
Adjustability
Safety Latches
Load Binder Features
Here are eight key features commonly found in load binders:
Load Binder Features
D shakles, bow shakles, and long D shakles offer several features that make them versatile and reliable for a wide range of applications. Some key features include:
Load-bearing Capacity
Wide Range of Sizes
Versatility
Durability
Easy to Use
Safety Mechanism
Choosing the Right Load Binder
When selecting the appropriate shakle for your specific application, consider the following factors:
Working Load Limit (WLL): Determine the maximum load the shakle will be subjected to and choose a shakle with a Working Load Limit that exceeds your requirements.
Shakle Type: Evaluate the specific needs of your application to determine whether a D shakle, bow shakle, or long D shakle is most suitable. Consider factors such as the shape of the load, space limitations, and ease of attachment.
Material Selection: Choose a shakle made from durable materials such as alloy steel or stainless steel. Consider the environmental conditions in which the shakle will be used to ensure its resistance to corrosion and wear.
Certification and Compliance: Ensure that the selected shakle meets recognized industry standards and carries the appropriate certifications for safety and performance.
By considering these factors, you can choose the right D shakle, bow shakle, or long D shakle that will meet your specific needs and provide reliable performance in your applications.
LET'S GET IN TOUCH
FAQ: Load Binder
A D shackle is a type of shackle that has a “D” shape when viewed from the side. It consists of a curved body and a pin or bolt that secures the two ends together. D shackles are commonly used for lifting, towing, and securing applications.
A bow shackle, also known as an anchor shackle, has a bow-shaped body instead of a straight “D” shape. It features a larger loop that provides more room for connecting ropes, chains, or straps. Bow shackles are frequently used in rigging and lifting operations.
A long shackle refers to a shackle with an extended length between its body and the pin or bolt. The additional length allows for more clearance and flexibility when connecting objects or handling larger loads. Long shackles are often used in situations that require increased reach or space.
Shackles are versatile hardware components widely used in various industries and applications. They are commonly employed for lifting heavy objects, securing loads during transportation, connecting ropes or chains in rigging, anchoring equipment, and even in recreational activities such as sailing or rock climbing.
Shackles are typically made from materials such as stainless steel, carbon steel, or alloy steel. These materials offer high strength, durability, and resistance to corrosion, making them suitable for demanding environments and heavy-duty applications.
