NACM96 Standard Link Chain

PRODUCT OVERVIEW

Our top-quality lashing chains are built for secure cargo transportation and heavy-duty load securing. Our reliable lashing chains provide exceptional strength and durability, ensuring peace of mind during transportation.

Specification

1. Proof Coil Chain Nacm96 (G30)

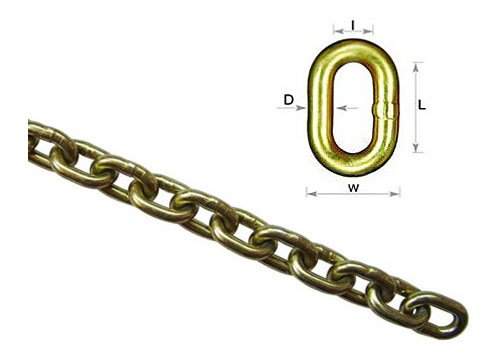

NORMAL SIZE		MATERIAL DIAMETER		WORKING LOAD LIMIT (MAX)		PROOF TEST (MIN)		BREAKING FORCE MIN		INSIDE LENGTH (MAXI		INSIDE WIDTH (MIN)
MM	IN	MM	IN	KG	LB	KN	Ib	KN	LB	MM	IN	MM	IN
4.0	1/8	4.0	0.156	170	375	3.6	800	7.1	1600	23.9	0.94	6.4	0.25
5.5	3/16	5.5	0.217	365	800	7.2	1600	14.3	3200	24.8	0.98	7.7	0.30
7.0	1/4	7.0	0.276	580	1300	11.6	2600	23.1	5200	31.5	1.24	9.8	0.38
8.0	5/16	8.0	0.315	860	1900	15.1	3400	30.2	6800	32.8	1.29	11.2	0.44
10.0	3/8	10.0	0.394	1200	2650	23.6	5300	47.1	10600	35.0	1.38	14.0	0.55
13.0	1/2	13.0	0.512	2030	4500	39.8	8950	79.6	17900	45.5	1.79	18.2	0.72
16.0	5/8	16.0	0.630	3130	6900	60.3	13600	120.6	27200	56.0	2.20	20.0	0.79
20.0	3/4	20.0	0.787	4800	10600	94.3	21200	188.5	42400	70.0	2.76	25.0	0.98
22.0	7/8	22.0	0.866	5810	12800	114.1	25600	228.1	51200	77.0	3.03	27.5	1.08
25.0	1	26.0	1.020	8140	17900	159.1	35800	318.2	71600	90.9	3.58	31.7	1.25

High Test Chain Nacm96(G43)

NORMAL SIZE		MATERIAL DIAMETER		WORKING LOAD LIMIT (MAX)		PROOF TEST (MIN)		BREAKING FORCE MIN		INSIDE LENGTH (MAXI		INSIDE WIDTH (MIN)
MM	IN	MM	IN	KG	LB	KN	Ib	KN	LB	MM	IN	MM	IN
7.0	1/4	7.0	0.276	1180	2800	26.0	3900	34.6	7800	31.5	1.24	9.8	0.38
8.7	5/16	8.7	0.343	1770	3900	36.0	5850	52.0	11700	32.8	1.29	11.2	0 44
10.0	3/8	10.3	0.406	2450	5400	48.0	8100	72.0	16200	35.0	1.38	14.0	0.55
11.9	7/16	11.9	0.468	3270	7200	61.3	10800	96.0	21600	41.6	1.64	16.6	0.65
13.0	1/2	13.5	0.531	4170	9200	86.5	13800	122.6	27600	45.5	1.79	18.2	0.72
16.0	5/8	16.0	0.630	5910	13000	26.0	19500	173.0	39000	56.0	2.20	20.0	0.79

Transport Chain Nacm96 (G70)

NORMAL SIZE		MATERIAL DIAMETER		WORKING LOAD LIMIT (MAX)		PROOF TEST (MIN)		BREAKING FORCE MIN		INSIDE LENGTH (MAXI		INSIDE WIDTH (MIN)
MM	IN	MM	IN	KG	LB	KN	Ib	KN	LB	MM	IN	MM	IN
7.0	1/4	7.0	0.276	1430	3150	28.0	6300	56.0	12600	31.5	1.24	9.8	0.38
8.7	5/16	8.7	0.343	2130	4700	41.8	9400	83.6	18800	32.8	1.29	11.2	0.44
11.9	3/8	10.0	0.394	2990	6600	58.7	13200	117.4	26400	35.0	1.38	14.0	0.55
13.0	1/2	13.0	0.512	5130	11300	100.4	22600	200.8	45200	45.5	1.79	18.2	0.72
16.0	5/8	16.0	0.630	7170	15800	140.4	31600	280.8	63200	56.0	2.20	20.0	0.79

Note: We also can make the nonstandard or special tensile chain according to ti diet’s requirements.

Lifting chain DIN5687-80 Applications

The Lifting Chain DIN5687-80 finds extensive use in a wide range of lifting applications, including:

Industrial Lifting: This chain is commonly employed in industrial settings for lifting heavy loads. It is used in conjunction with hoists, cranes, and other lifting equipment to provide secure and reliable lifting solutions.
Construction: The Lifting Chain DIN5687-80 is widely used in the construction industry for tasks such as hoisting building materials, lifting heavy equipment, and securing loads during construction projects.
Manufacturing: In manufacturing facilities, this chain plays a crucial role in material handling, assembly line processes, and machinery installation. Its high strength and durability make it well-suited for demanding manufacturing environments.
Shipping and Logistics: The Lifting Chain DIN5687-80 is utilized in shipping ports and logistics operations for loading and unloading cargo, securing containers, and lifting heavy goods for transportation.

Lifting chain DIN5687-80 Features

The Lifting Chain DIN5687-80 offers several notable features that make it a preferred choice in lifting applications:

High Tensile Strength

This chain is manufactured using materials with high tensile strength, ensuring it can withstand heavy loads and provide reliable lifting capabilities.

Durability

The chain is designed to be durable and long-lasting, able to endure the rigors of lifting operations without compromising its performance.

Excellent Load-Bearing Capacity

The Lifting Chain DIN5687-80 is engineered to handle significant loads, making it suitable for lifting heavy objects with confidence and safety.

Easy Handling and Installation

The chain is designed for ease of handling and installation, allowing for efficient and convenient use in various lifting applications.

Compliance with Standards

The Lifting Chain DIN5687-80 adheres to the DIN5687-80 standard, ensuring its compliance with safety regulations and industry requirements.

Versatility

This chain is versatile and can be used in diverse lifting scenarios, providing flexibility for different applications and industries. It undergoes stringent quality control processes to ensure its reliability and safe performance in lifting operations.

Choosing the Right Lifting chain DIN5687-80

When selecting the appropriate Lifting Chain DIN5687-80 for your specific lifting requirements, consider the following factors:

Working Load Limit (WLL): Determine the maximum load the chain will be subjected to and select a chain with a suitable Working Load Limit that exceeds your requirements.
Chain Size: Choose the appropriate chain size that aligns with the load capacity and lifting equipment you will be using.
Material: Consider the material of the chain based on the environmental conditions it will be exposed to. For example, stainless steel chains offer increased resistance to corrosion in harsh environments.
Certifications and Compliance: Ensure that the selected Lifting Chain DIN5687-80 meets the necessary certifications and industry standards for safety and quality.

RELATED PRODUCTS

ASTM80 USA standard link chain

Ordinary Mild Steel Link Chain

Lashing chain

Lifting chain

FAQ - Lifting chain DIN5687-80

What is a passing link chain?

A passing link chain is a type of chain that features oversized links, allowing the chain to pass easily through itself. This design makes it ideal for applications where the chain needs to be easily connected, disconnected, or looped back on itself.

What are the key features of a passing link chain?

Passing link chains typically have large, elongated links with a consistent shape and size. They are often made from durable materials such as steel or stainless steel to provide strength and resistance to wear. The links are designed to allow the chain to easily pass through itself, making it versatile and easy to use.

What are the common applications of passing link chains?

Passing link chains are commonly used in applications where quick and easy connection and disconnection is required. They are often used in hanging fixtures, chandeliers, swings, and various types of suspensions. They can also be used for decorative purposes or in crafting projects that require a visually appealing chain.

Can passing link chains support heavy loads?

Passing link chains are not typically designed for heavy lifting or load-bearing applications. They are more suitable for light to moderate loads and are primarily used for their ease of use and versatility rather than their load-carrying capacity. It is important to check the specifications and weight limits provided by the manufacturer for the specific passing link chain being used.

Are passing link chains suitable for outdoor use?

Passing link chains can be used outdoors, but their durability and resistance to weather conditions may vary depending on the material and finish of the chain. Stainless steel passing link chains are generally more resistant to corrosion and are suitable for outdoor applications where exposure to moisture and harsh elements is a concern. It is recommended to choose a passing link chain with appropriate corrosion resistance for outdoor use.
